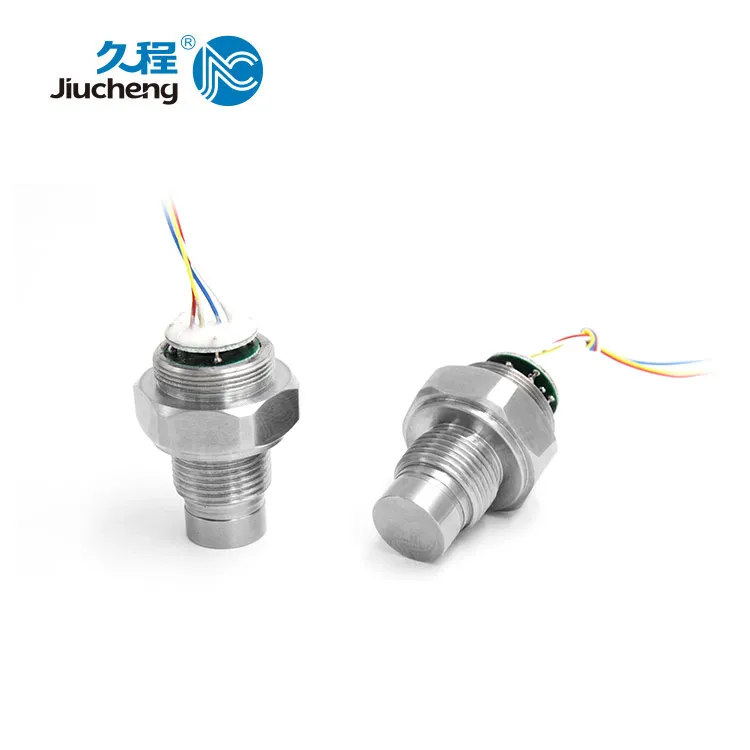

JC-CK01 Force Sensor
Output:1~2mV/V
Male thread: M20X1.5,NPT1/2
Pressure Range: 0~1MPa,5MPa…200MPa
Introduction
JC-CK01 cavity-free (flush diaphragm) force sensor using high-precision foil strain gauge, no cavity measuring diaphragm, especially for measuring the viscosity of the liquid. Has a good anti-vibration ability. Can be equipped with a variety of unique amplifier circuit, such as anti-interference type, high temperature type, intrinsically safe explosion-proof, etc., especially suitable for oilfield logging, pharmaceutical, textile and the other thick and easy to block industrial sites, and has been applicated very well in the domestic oil field.
Features
* High temperature, high pressure
* High precision, high stability
* Anti-vibration, anti-impact, corrosion-resistant
* All stainless steel structure
* Smart size, light weight and direct process installation
Application
* Oil downhole equipment
* Aerospace,aviation
* Medicine, biochemistry, fermentation system
* Other automatic control and testing system

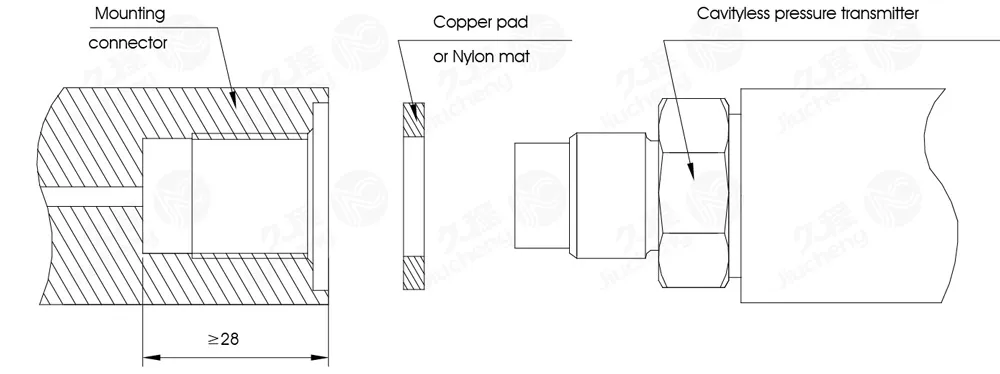

Installation Instructions for reference

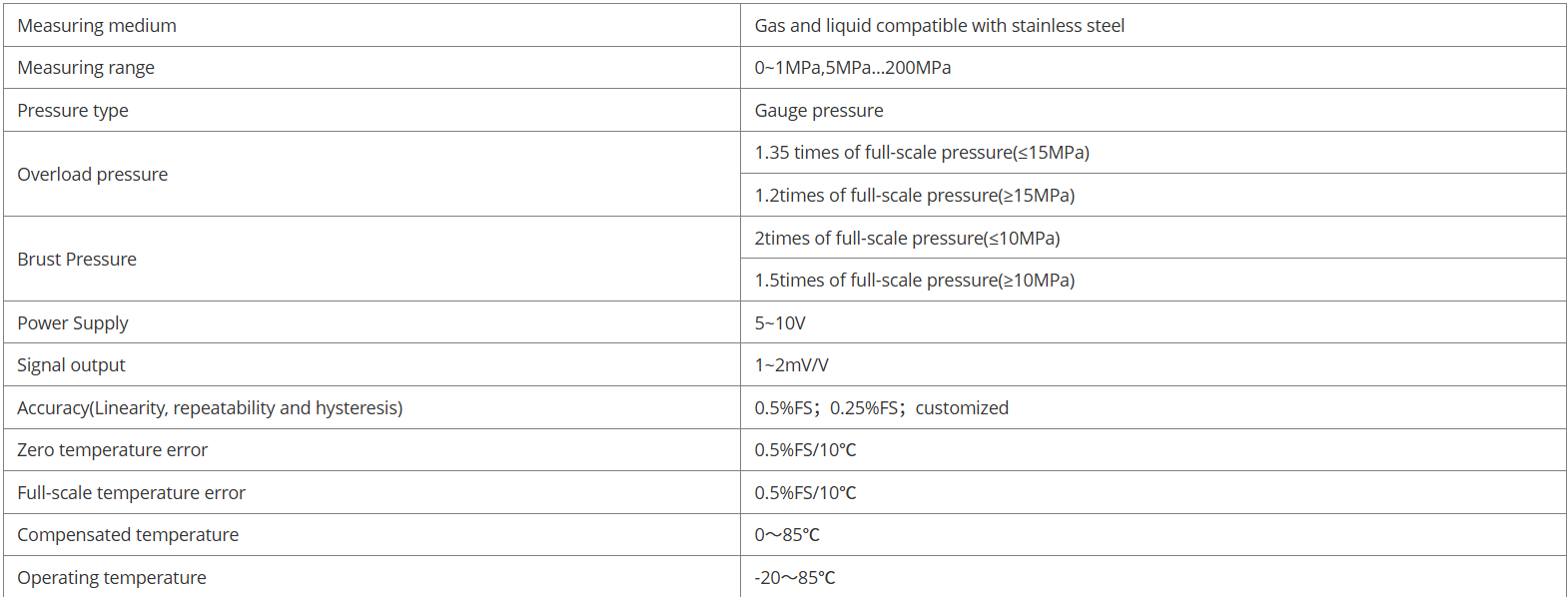

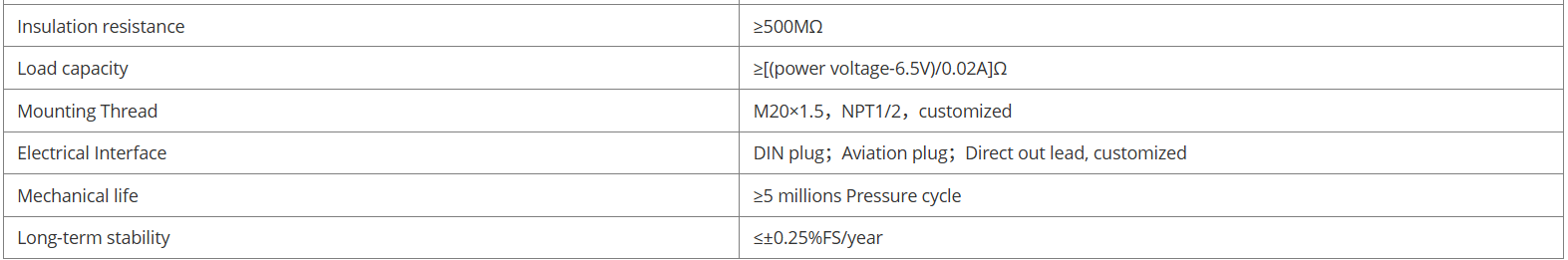

Technical Parameters

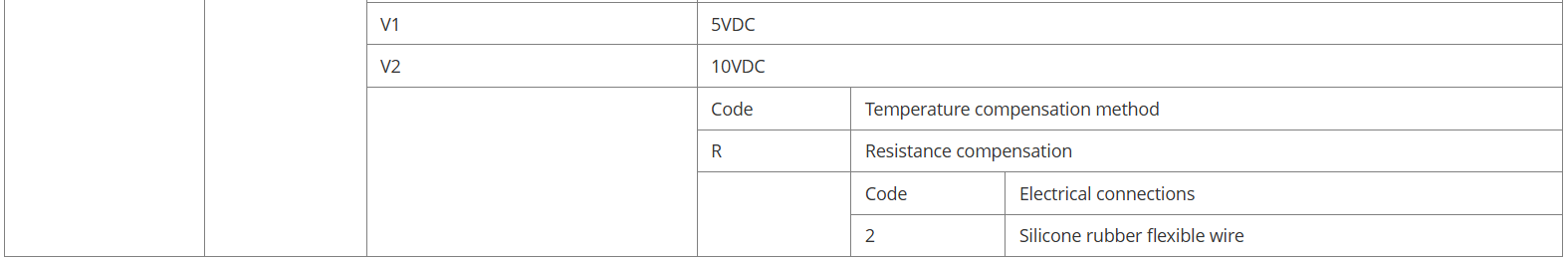

Ordering Information
Note:
1. The maximum pressure of the system should be less than the overload protection limit of the sensor, otherwise it will affect the service life of the product and damage the product.
2. Do not force to pull the pins or the leads of sensitive components.
3. If you have special requirements on product performance parameters and functions, please contact us.
