JC-YD piezoelectric micro dynamic pressure sensor
In various fields, including aerodynamics research, aircraft and engine testing, wind tunnel experiments, and the study of shock waves from chemical or nuclear explosions, high dynamic frequency response is required. These applications specifically measure changes in pressure during specific experimental conditions to replicate pulsation patterns. The J C-YD series, a piezoelectric pressure sensor, is compactly designed for these applications. It can output charge signals or be equipped with a dedicated charge amplifier to convert them into standard signal outputs. This product can replace similar international products, offering advantages such as a wide operating temperature range, resistance to overload impacts, and high static pressure tolerance.
Features
■ Wide range of measurement media;
■ Wide pressure measurement range;
■ Receive special customization;
■ Stable work;
■ Strong anti-interference ability;
■K has strong impact resistance and reliable performance;
■ Small size, light weight, complete types, high cost performance;
Application
■ military engineering
■ Chemical explosion test
■ hydrodynamics
■ Internal combustion engine system
■ aerodynamics
■ Overvoltage shock, shock tube experiment
■ Hydraulic power machinery test and other scientific tests

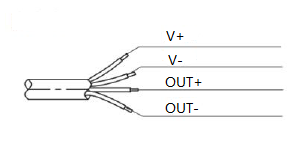

Process Connection Diagram
■Charge output ■voltage output
The above products are conventional products, and the specific wiring method is referred to the installation manual;

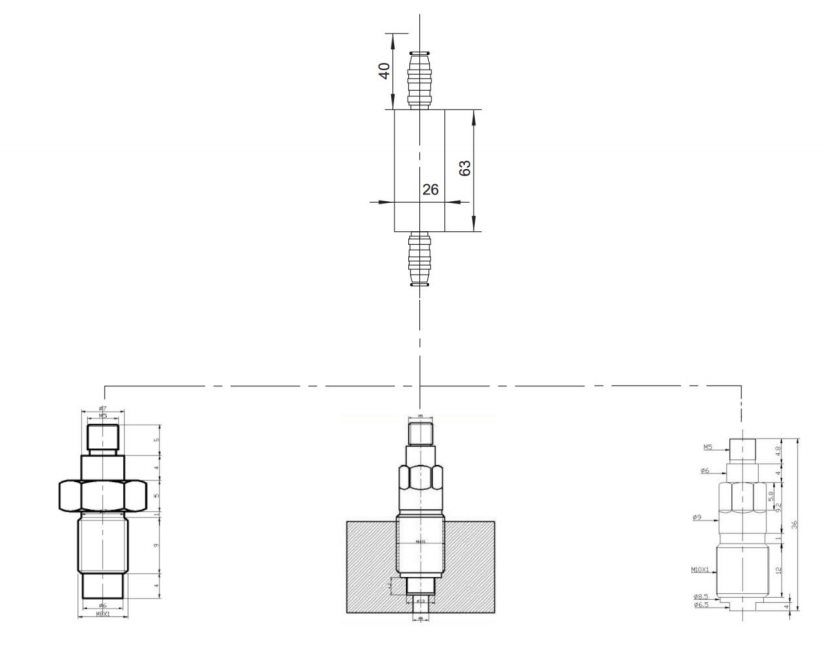

※Product installation mode is customized, please consult for details;

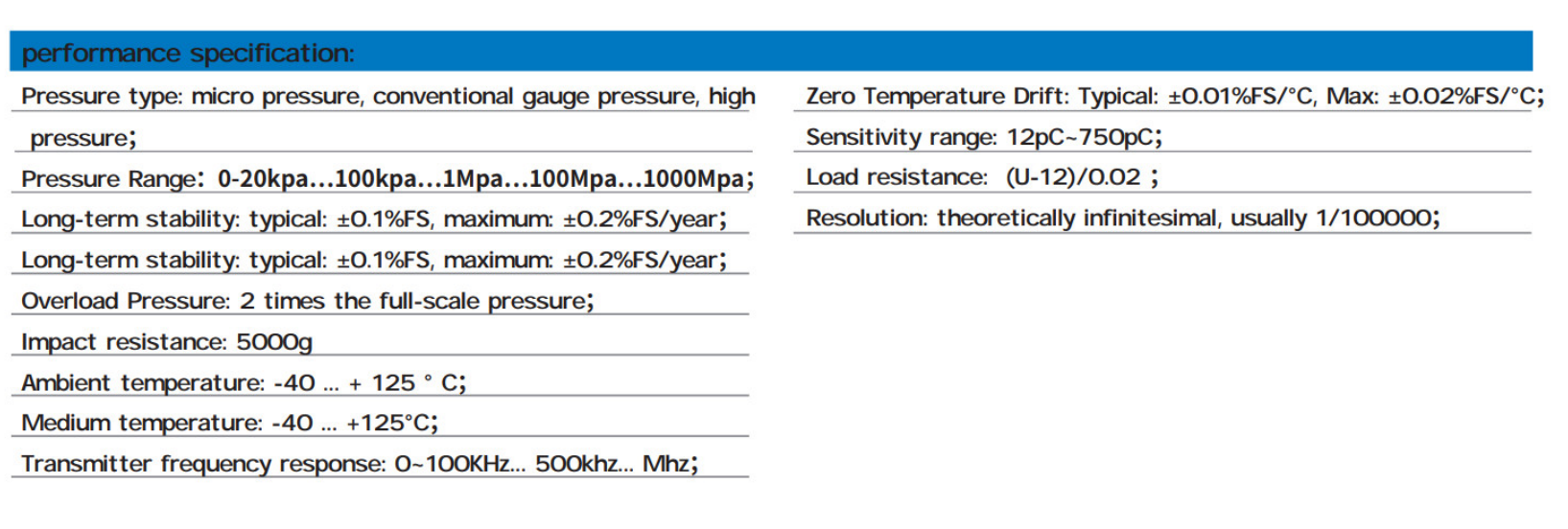

Performance Specification
