JC14 Micro Fused Pressure Transmitter
Introduction
JC14 micro fused pressure transmitter is an industrial measuring instrument that is modular in design and meets global OEM standards .The series is stable, reliable and with excellent cost performance, rugged and durable to meet more stringent industrial standards, widely used in industrial support, industry support and equipment support. The series includes a variety of options, which are applied to different industries and different working conditions. It solves the needs for economic pressure monitoring in different occasions and serves a wide range of industries.
JC14 micro fused pressure transmitter is modular design to meet the diverse needs of users, and set a new performance-price ration model for demanding commercial and industrial applications. JC614 is machined from a single piece of 17-4PH stainless steel. It has excellent overload performance and impact resistance, and the pressure interface is free of welds, silicone oil or other organic materials with good sealing performance. The sensor sensitive device is firmly sintered on the pressure base by the glass spring technology, which gently improves the high temperature resistance and vibration resistance of the sensor, ensuring the long-term stability and reliability of the transmitter in the harsh industrial environment and is durable. The series complies with CE standards, including surge protection, polarity protection at the input of the circuit and short-circuit protection at the output, suitable for a wide range of OEM applications from small to large quantities.
Features
* Anti-leakage
* Low cost OEM
* No“O” ring、 silicone oil、weld
* Stainless Steel single piece integrated structure for harsh environment
* Pressure range up to 1000bar
* High overload, impact resistance
* Widely operating temperature range
Application
* Pumps and Construction Machinery
* Hydraulic and Pneumatic Systems
* Energy and Water Treatment Systems
* Agricultural Machinery equipment, Agricultural Spraying equipment, Spraying equipment
* Aircraft test bench/Oil well, Car brake and gearbox system
* HVAC, test station,Power Station

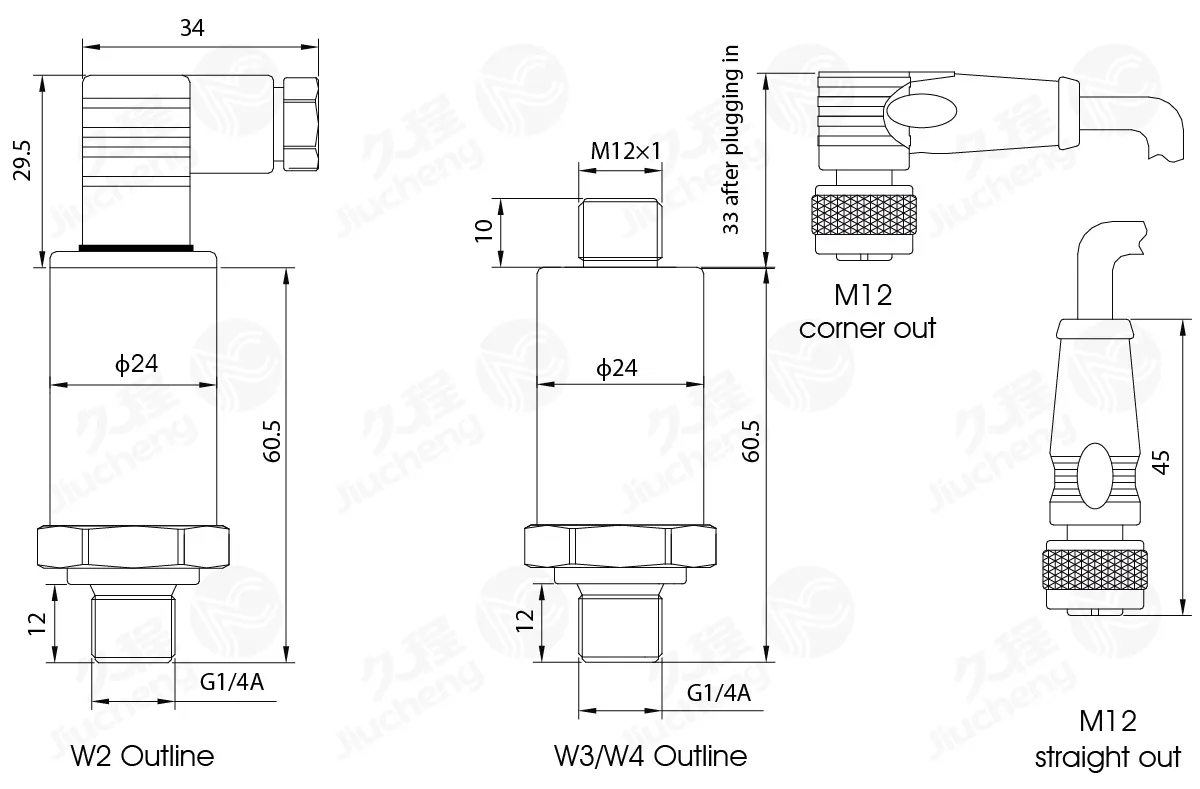

Dimensions(mm)
Electrical Connections
Technical Parameters

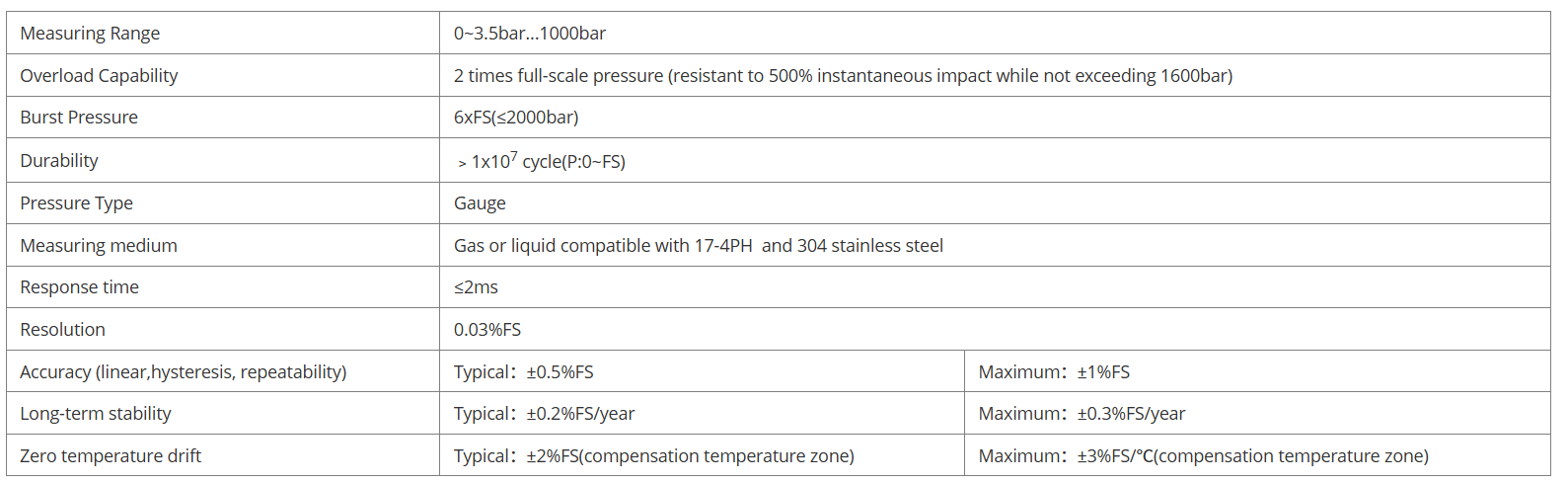

Performance Parameter
Environmental Conditions
Electrical Specifications
Material

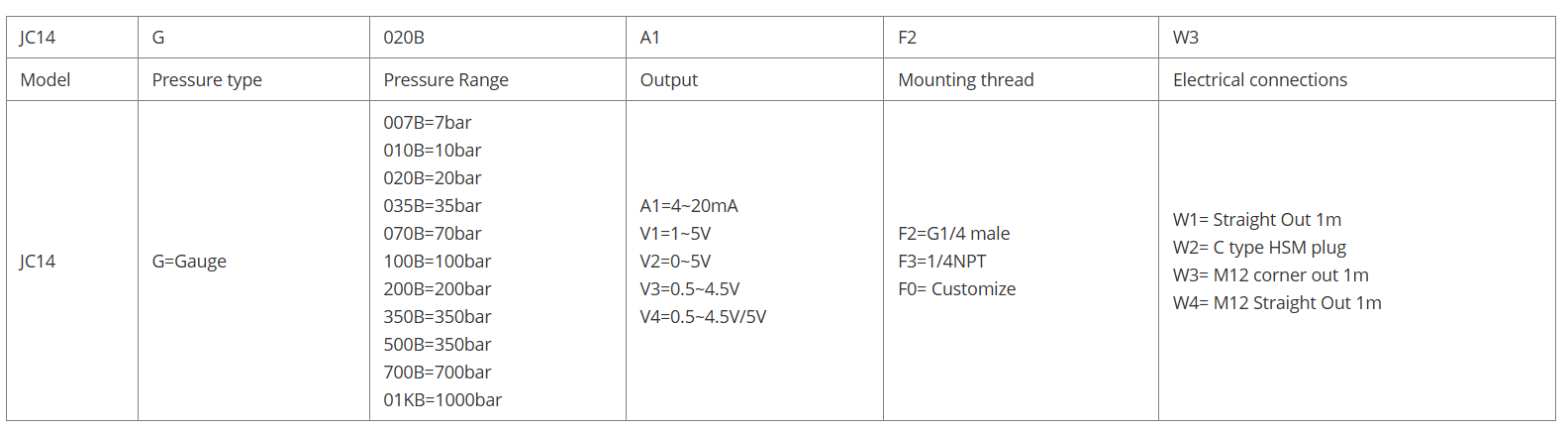

Ordering Information
Model example: JC14G020BA1F2W3
(JC14 Micro Fused Pressure Sensor Transmitter; Range 0~2MPa Gauge; Output 4~20mA; Accuracy 0.5% typical; Power Supply24VDC; Pressure Connection G1/4 male thread; Electrical Connection M12X1 Straight Out 1m)
Remarks: It can be customized if the order quantity exceeds a certain amount. Please contact the sales engineers for details.
