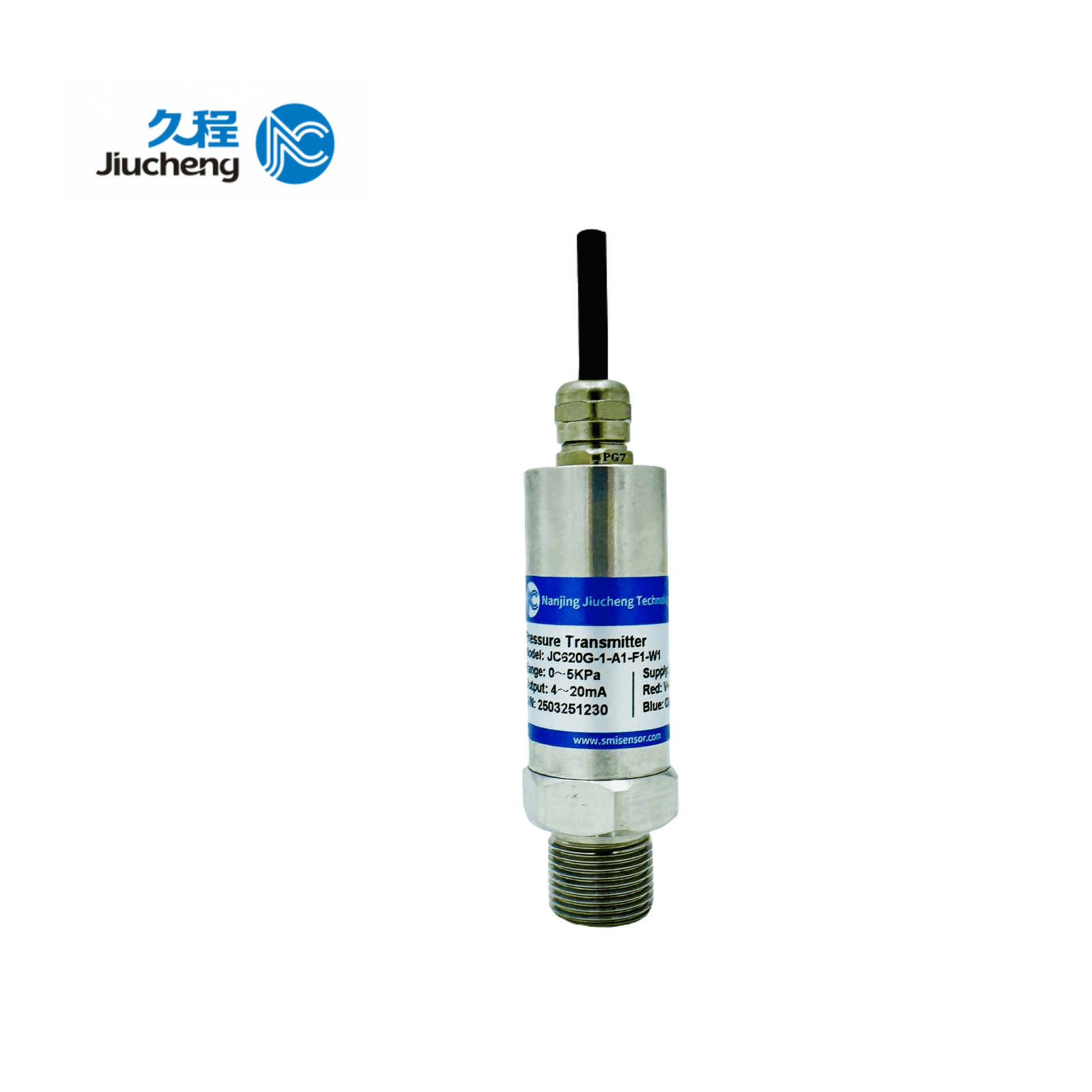

JC90 High- frequency Dynamic Pressure Transmitter
JC90 is an industrial measuring instrument that is modular in design and meets global OEM standards. The series is stable and reliable, and has
excellent cost performance. It is rugged and durable to meet the requirements of more stringent industrial standards. It is widely used in industrial
support, industry support and equipment support. The series includes a variety of options, which are applied to different industries and different
working conditions. It solves the needs for economic pressure monitoring in different occasions and serves a wide range of industries.。
JC90 high-frequency dynamic pressure transmitter is designed and manufactured by the company using special technology. This sensor is
designed and manufactured by advanced MEMS technology. Three-dimensional integrated double-sided silicon piezoresistive pressure sensitive
components through the ion implantation, fine lithography technology of the Wheatstone bridge, through silicon-silicon bonding technology,
inverted V-slot design to make products with high sensitivity and dynamic characteristics. This principle design ensures the dynamic characteristics
of the natural frequency of 500KHz and the measurement stability of the product, followed by the special high-frequency digital calibration circuit,
which can convert the change of the pressure amount into a linear corresponding standard electrical signal, such as 4-20mA, 0-5V, etc., while
ensuring the accuracy of the measurement.
Dimensions(mm)
Electrical Connections
Technical Parameters
Environmental Conditions
Electrical Specifications
Material
Ordering Information
Model example: JC90G010BA1F2W2
(JC90 High- frequency Dynamic Pressure Transmitter; Range 0~1MPa Gauge; Output 4~20mA; Accuracy 0.5% typical; Power Supply 9~30VDC;-
Pressure Connection G1/4 male thread; Electrical Connection Hessman plug; Special instruction: 010B=10bar G/A, G/A stands for gauge and absolute pressure, G gauge, A absolute)
Remarks: It can be customized if the order quantity exceeds a certain amount. Please contact the sales engineers for details.
